Windshield Chip Repair


Windshield Damage

When a road pebble or rock strikes a windshield, it chips the outer glass layer, creating a chip or small crack. The chipped glass particles become surrounded by tiny air pockets, causing visual distortion. These stone chips and small cracks happen all the time. Vehicles moving quickly, slowly, or even standing still can suffer this minor windshield damage.


All stone chip damage is different

No two stone chips are identical. They may look alike, but they’re different in many ways. Some are as small as a penny, others can be as large as a half dollar. And they come in many different shapes too.


The principle of windshield repair

This patented design evacuates the air to fill the cavities with a specially formulated liquid resin which when cured with ultra-violet light clears the distortion and bonds the loose glass preventing the damage from spreading.



How you get it

Stone hits windshield causing crater crack

Actual before and after image of repaired windshield damage


Types of windshield damage

Combination break


Bull's-Eye break

Daisy break


Star break

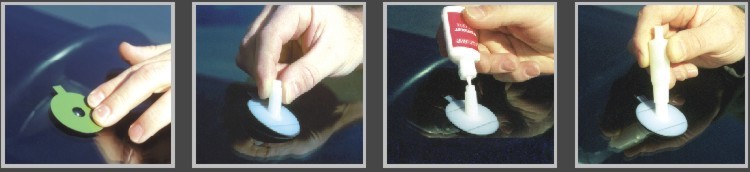

1.  Clean window and place the Alignment Seal over the damaged


2.  Align Resin Chamber (Pedestal) directly over the Adhesive Seal.

3.  Dispense UV Resin directly into Resin Chamber.

4.  Place Flow Regulator on Resin Chamber.





Click here to see system diagram

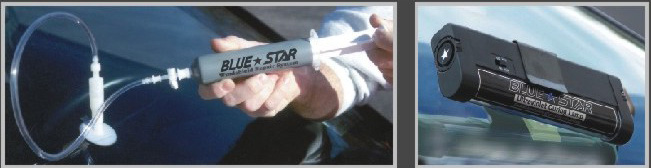

5.  After attaching Hose and Injector Assembly, the system is ready to perform the Vacuum and Pressure cycle to complete the repair.

6. Remove system and cure with UV Lamp.

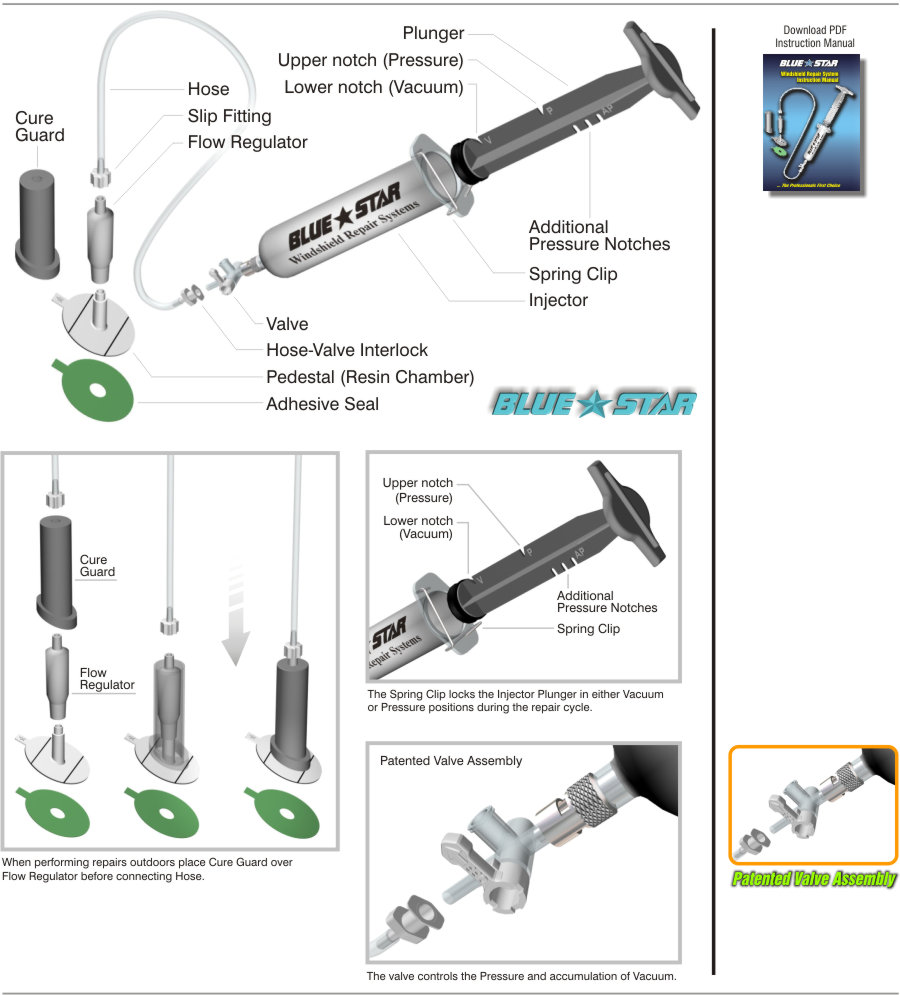

System Diagram
